Products

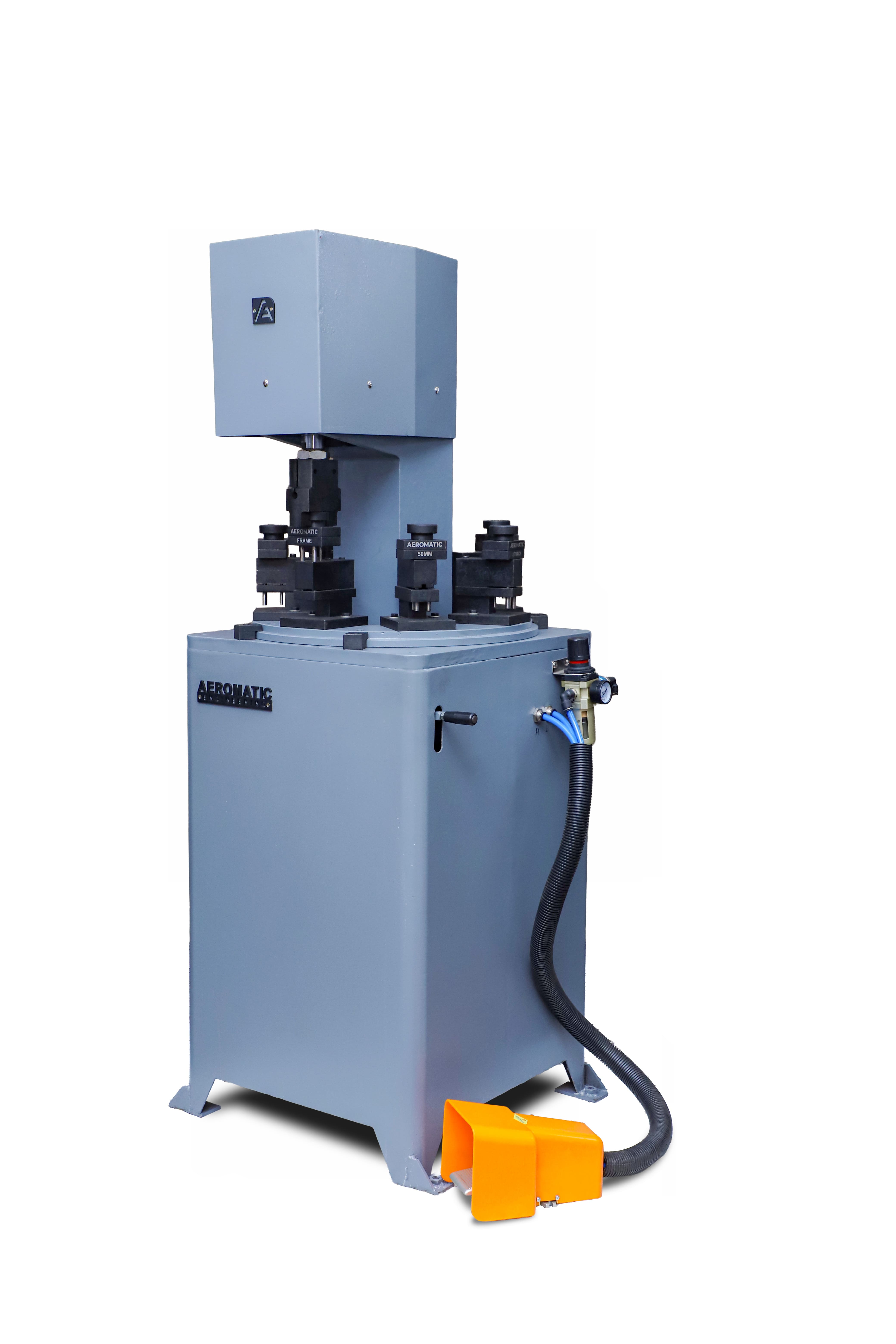

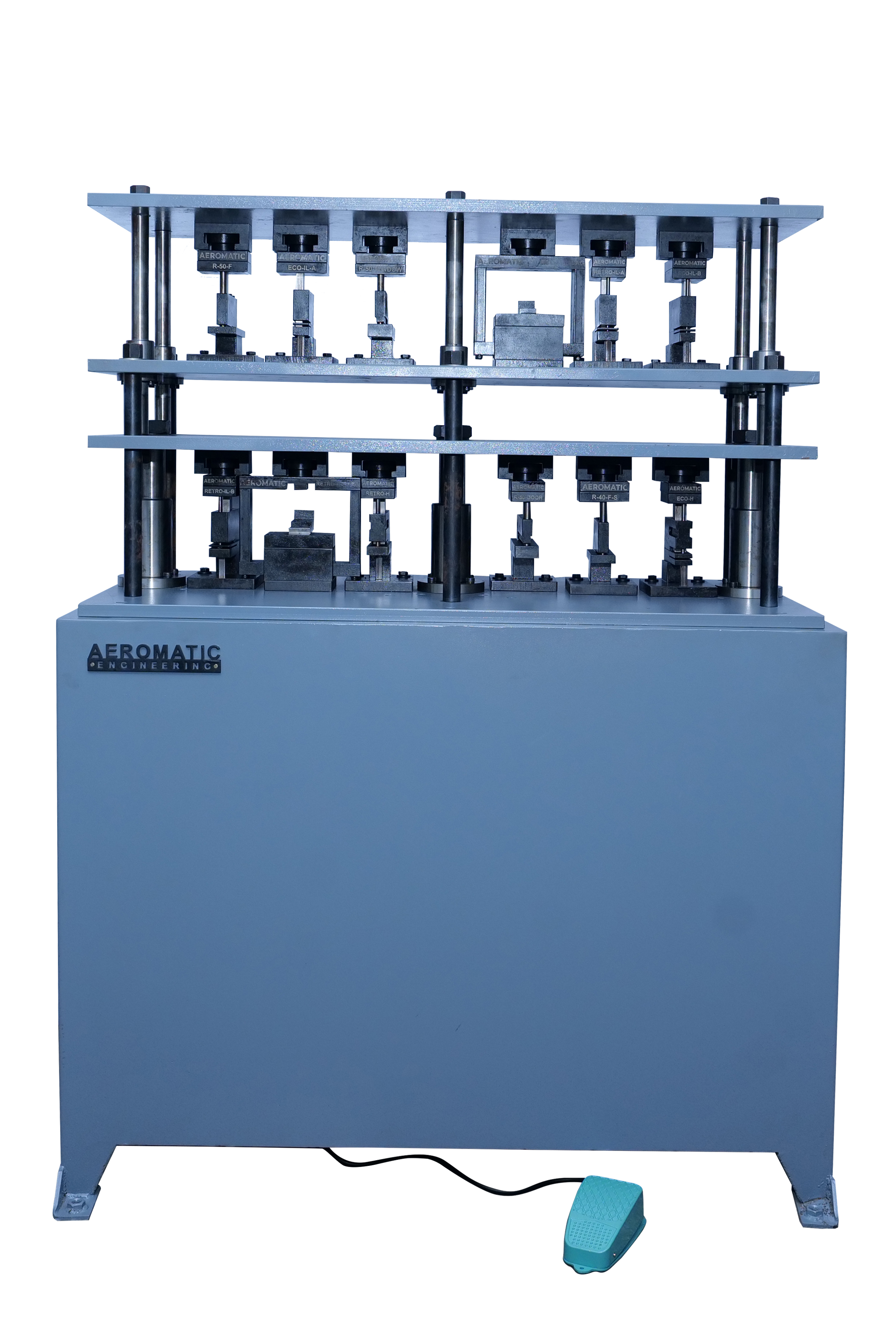

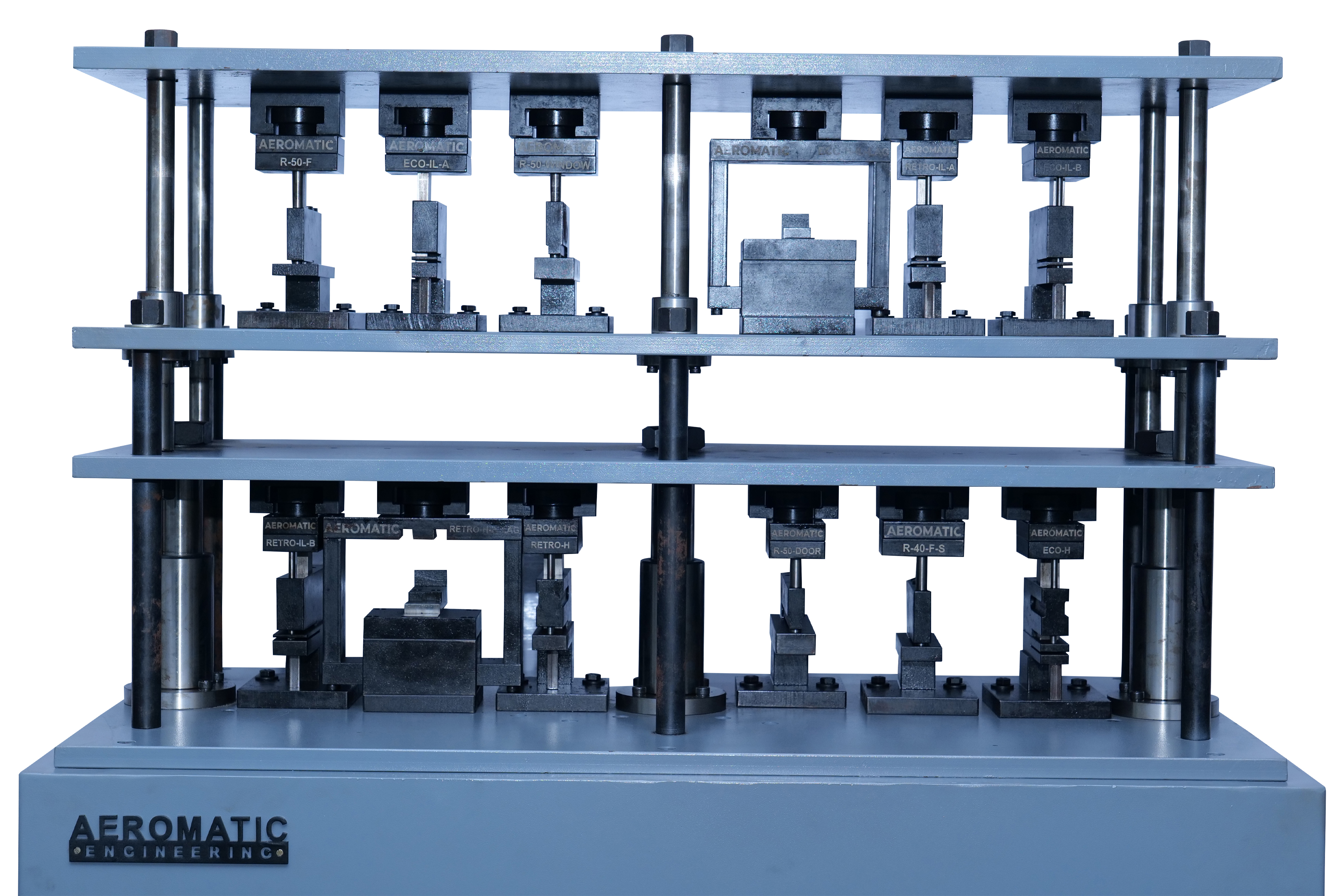

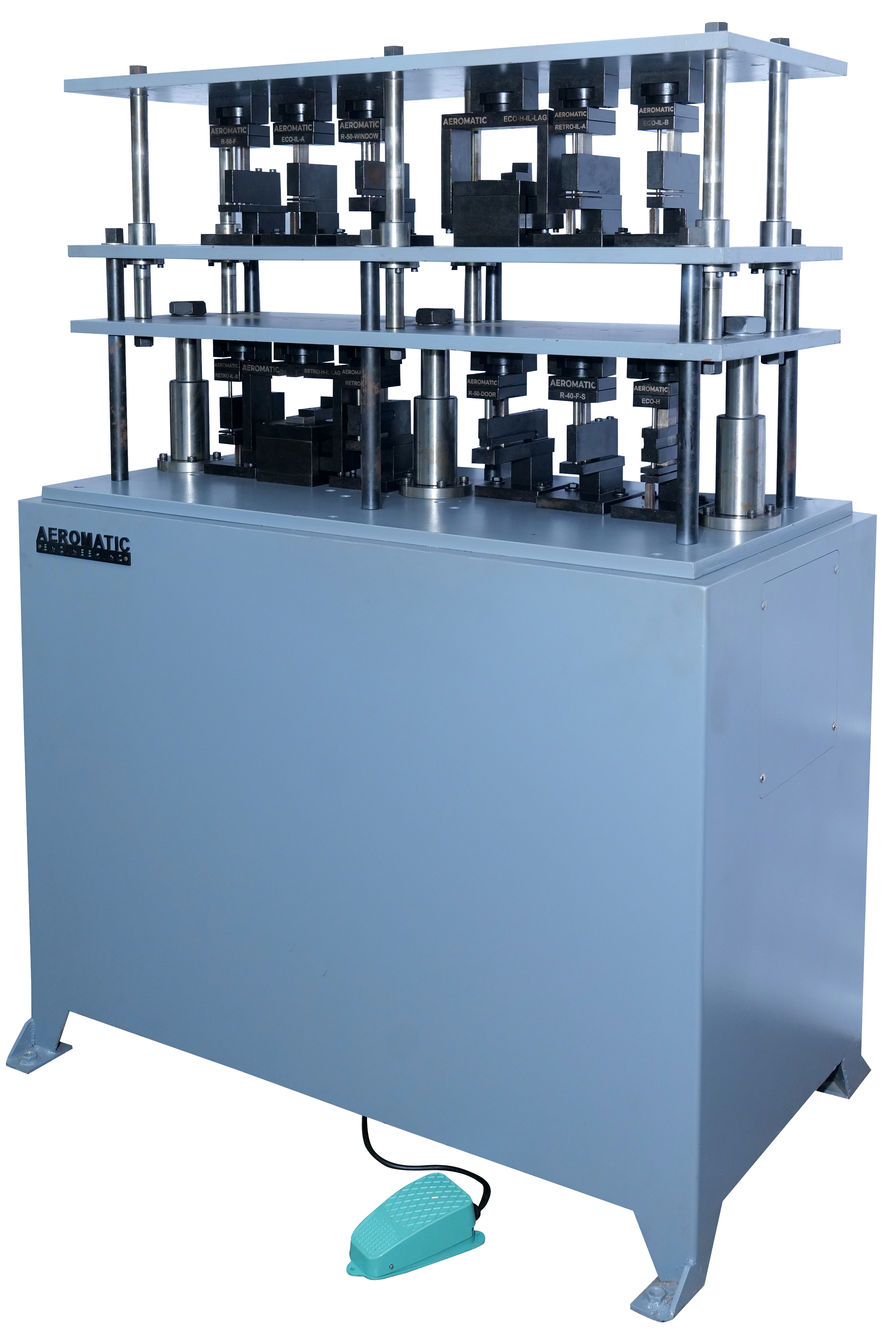

1. Die Punching Machine

AEPM - 07

General Features :-

  • Very Heavy Duty Machine with Special Plate Mounting arrangement upto 1 mm to 2.5 mm punching thickness is possible for any PVC and Aluminium Profile System.
  • Any Customization with Die is possible.
  • Compact, Sleek and Rigid MS Structure ensuring long term error free running of machine.
  • Any Seven Dies can be insert in the machine.
  • Any Customized or Regular mould is possible.
  • Easy to move on site and within factory operations.
  • Robust Machine Stand.

Bar:

6 - 8

Air Cons:

100 L/min

W x L x H cm:

26 x 21 x 65

Waight:

200 Kg.

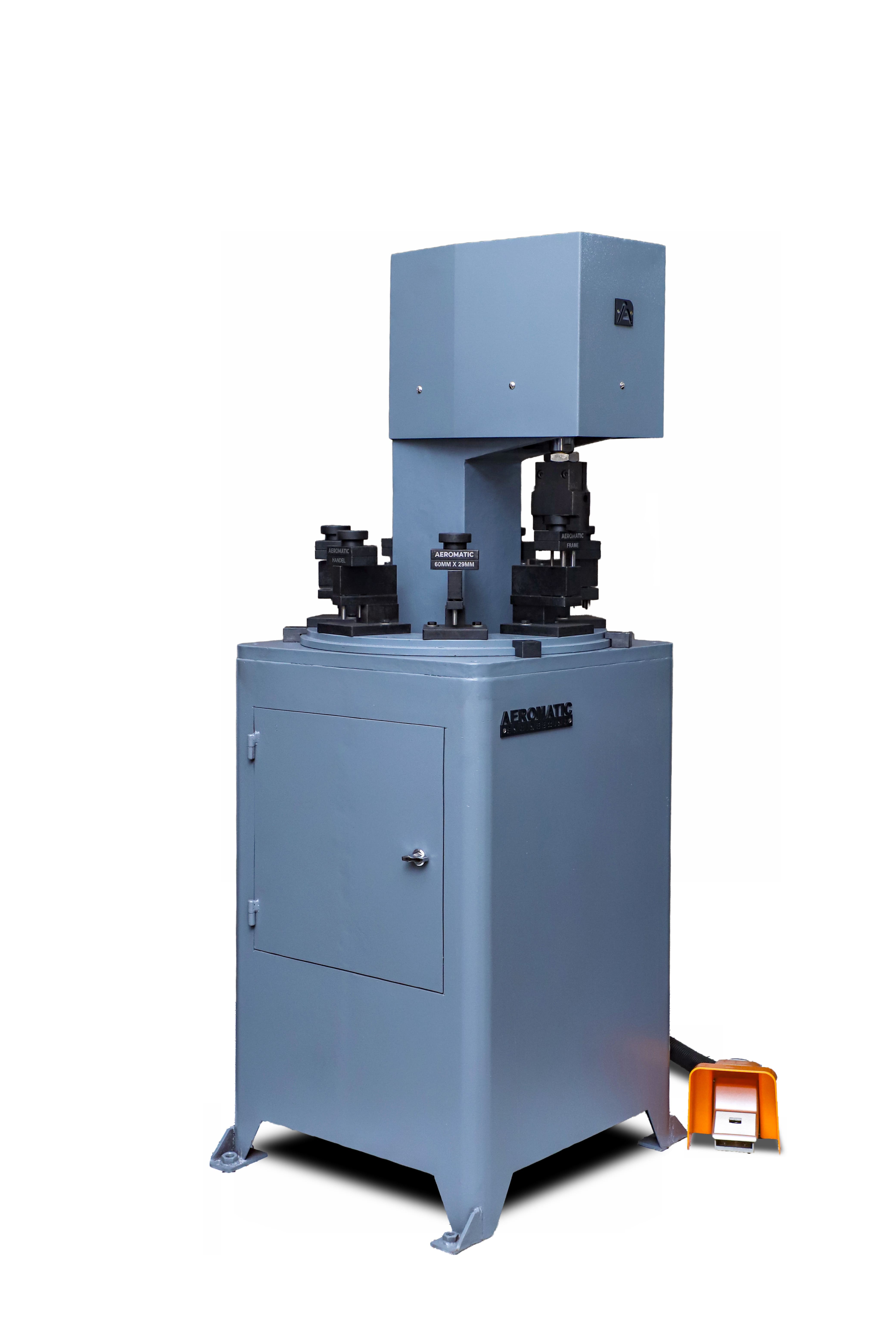

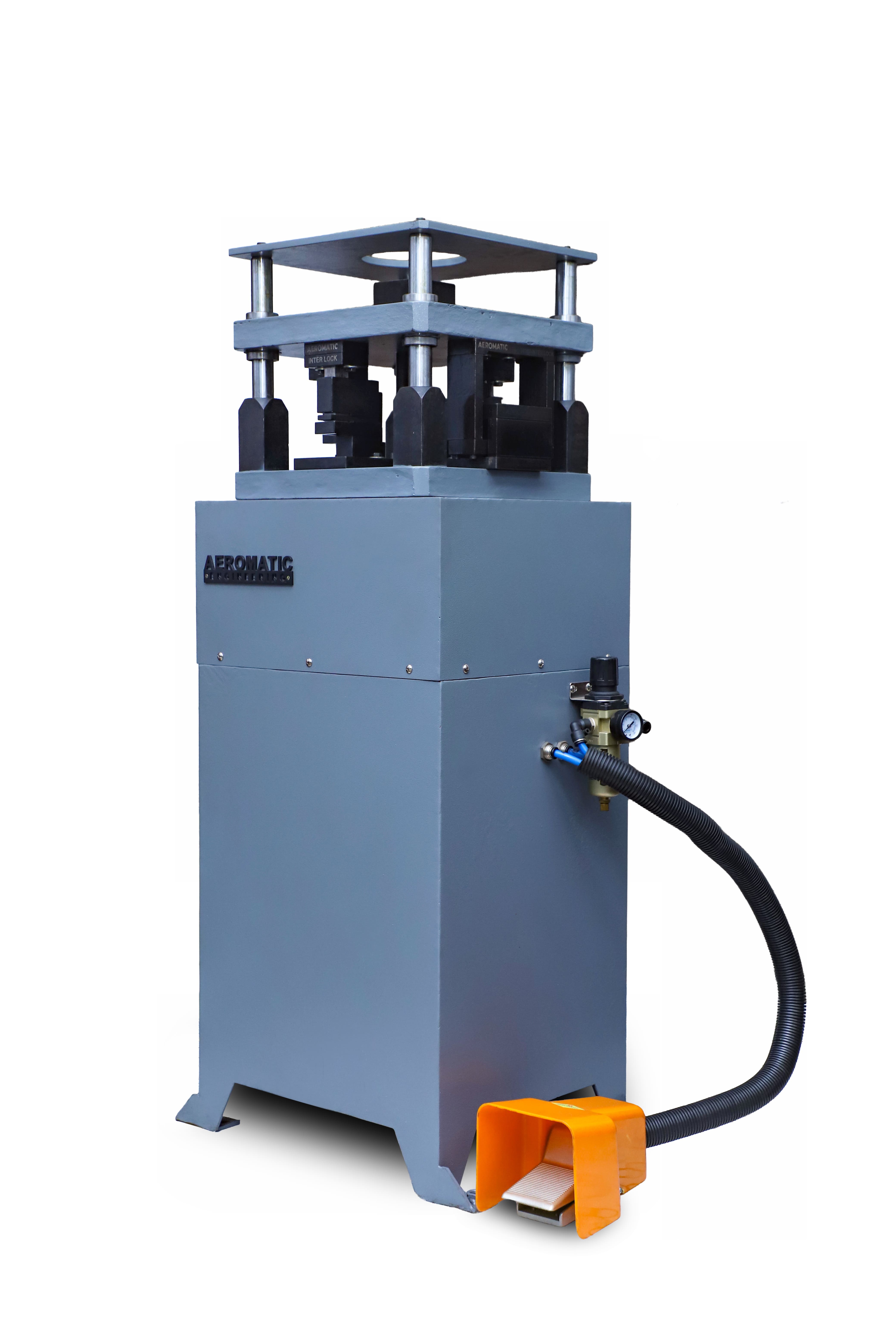

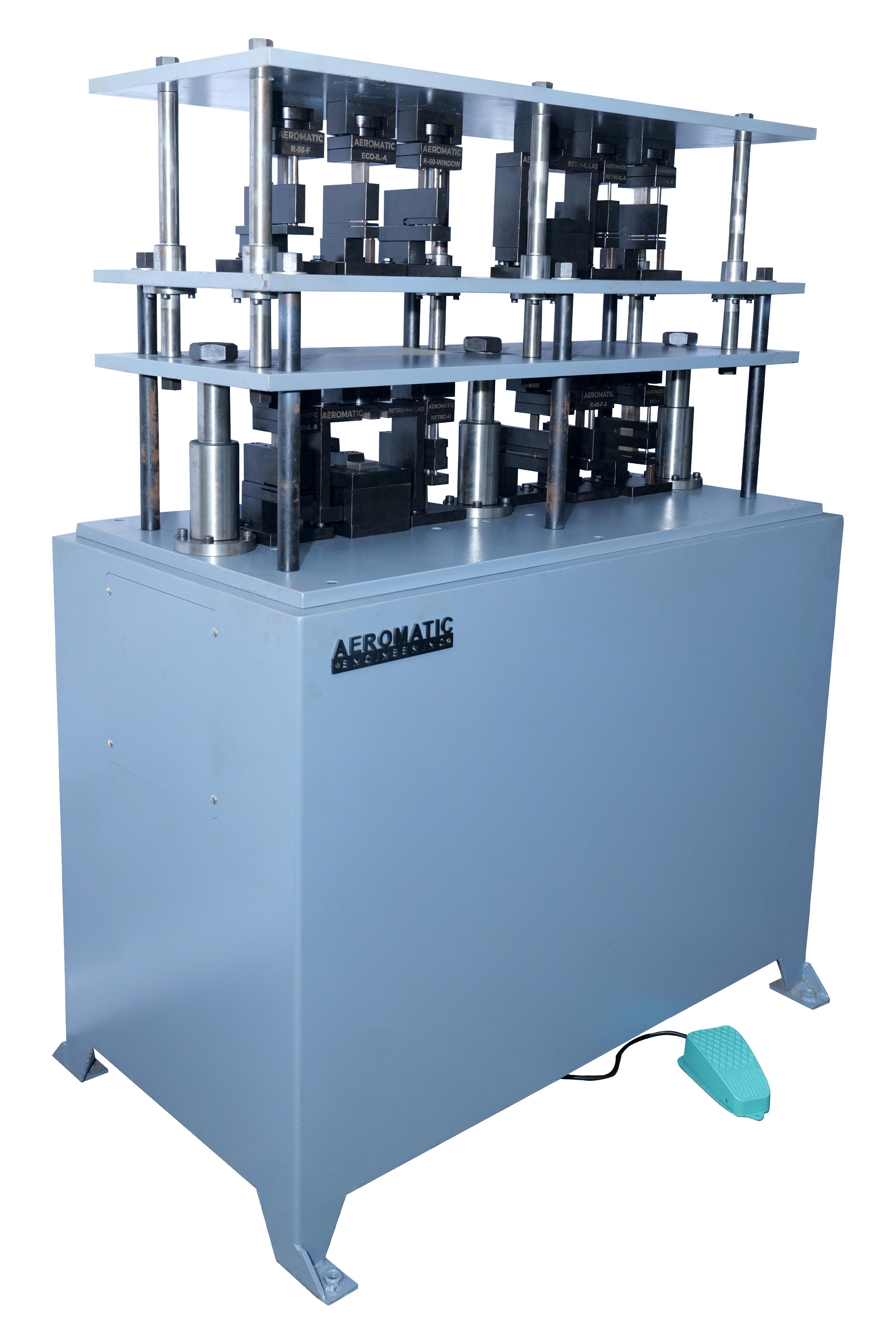

2. Die Punching Machine

AEPM - 04

General Features :-

  • Very Heavy Duty Machine with Special Plate Mounting arrangement upto 1 mm to 2.5 mm punching thickness is possible for any PVC and Aluminium Profile System
  • Any Customization with Die is possible.
  • Compact, Sleek and Rigid MS Structure ensuring long term error free running of machine.
  • Any Seven Dies can be insert in the machine.
  • Any Customized or Regular mould is possible.
  • Easy to move on SITR and Factory Operation.
  • Robust Machine Stand.

Bar:

6 - 8

Air Cons:

100 L/min

W x L x H cm:

22 x 16 x 50

Waight:

150 Kg.

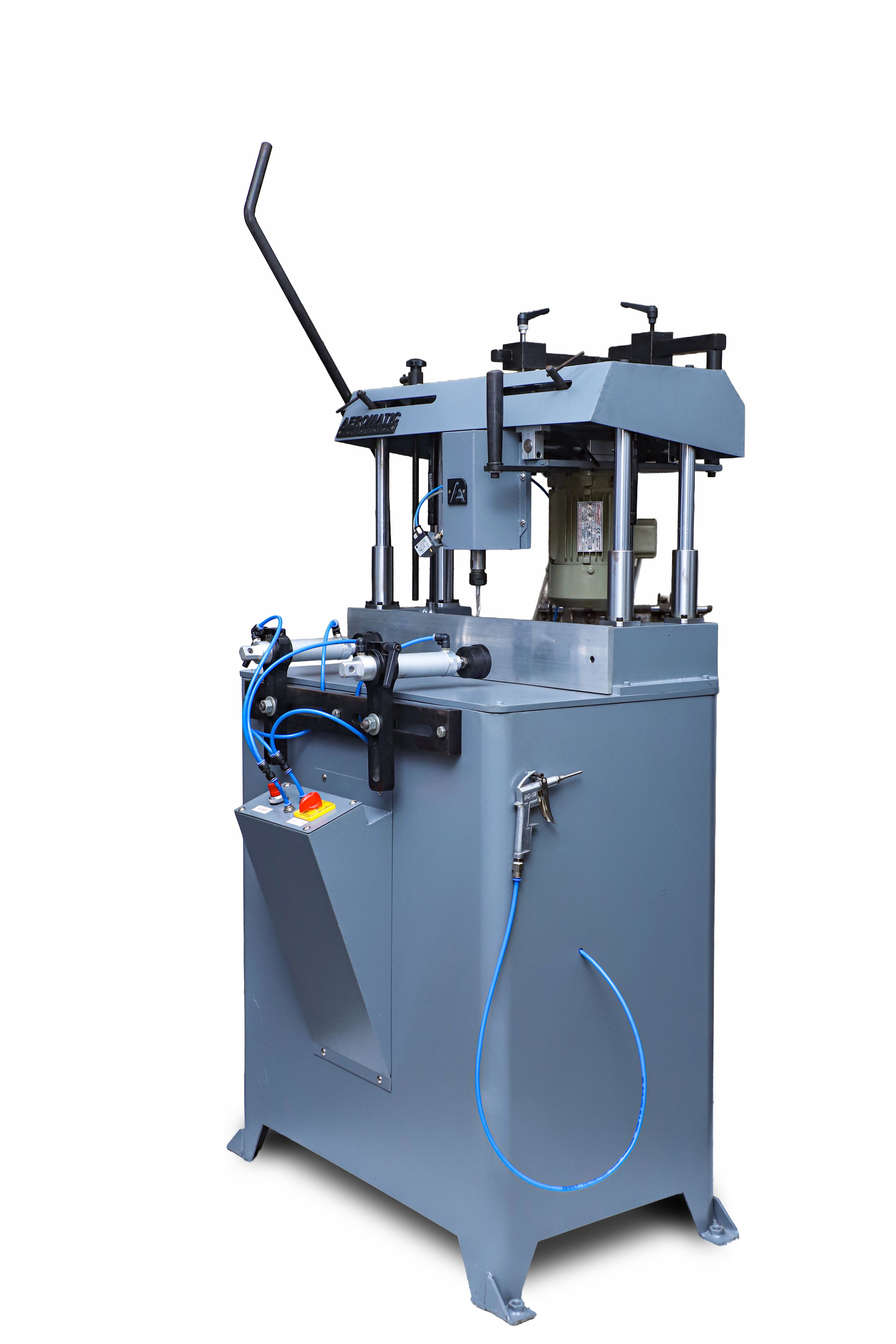

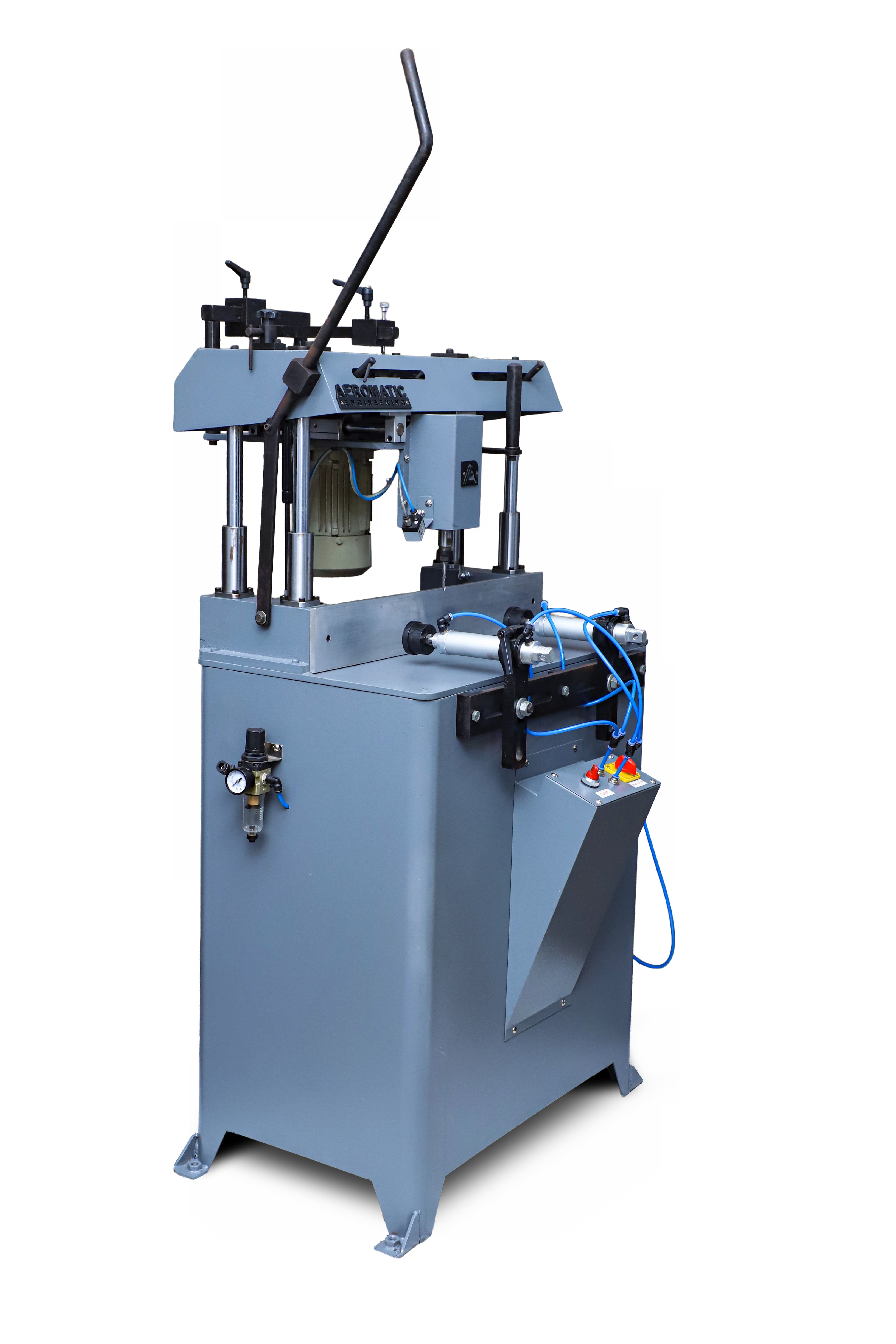

3. Copy Router Machine

AECR - 01

General Features :-

  • Opening Locks, Drilling Handles, Hinges, Espagnolette and Barrel Holes etc. on PVC and Aluminium Profiles.
  • Clamping Capacity : WMAX-160, WMIN-10 HMAX-150, HMIN-10 mm
  • Corrosion Proof Bearing Shaft
  • Robust Machine Stand.
  • Electroplated Cop Template.
  • Ø6 x8 x14 xL60 mm Router bits included.

STANDARD ACCESSORIES :-

  • Spray Tool Lubrication System.
  • Ø6 x8 x14 xL60 mm of Router Bit.
  • 2x Pnuematic Horizontal Clamps.
  • Air Gun.

0.75 HP - 440 :

DC - 1.3 AMP.

6000:

RPM

Bar:

6 - 8

Air Cons:

100 L/min

W x L x H cm:

32 x 24 x 68

Weight:

140 Kg.

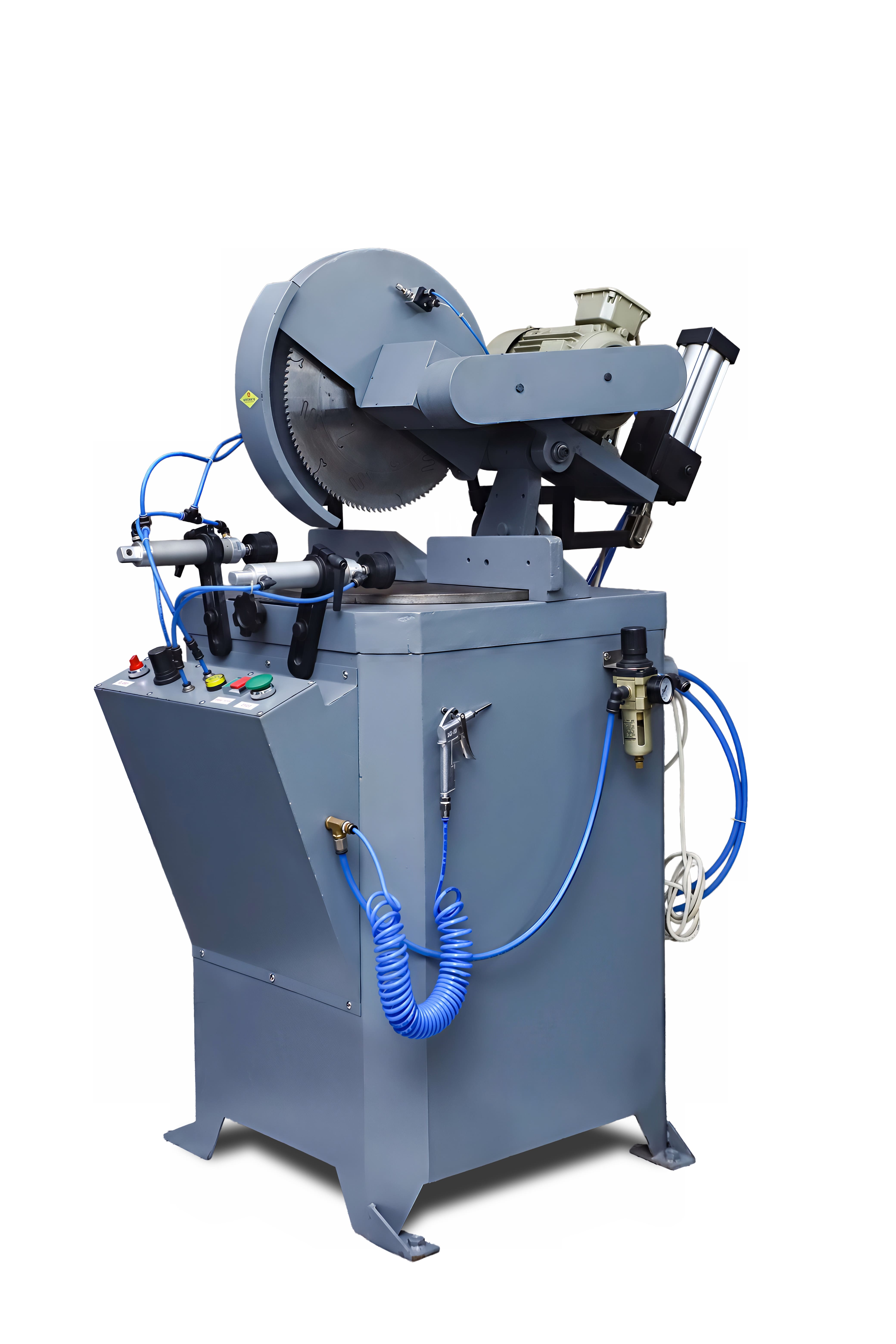

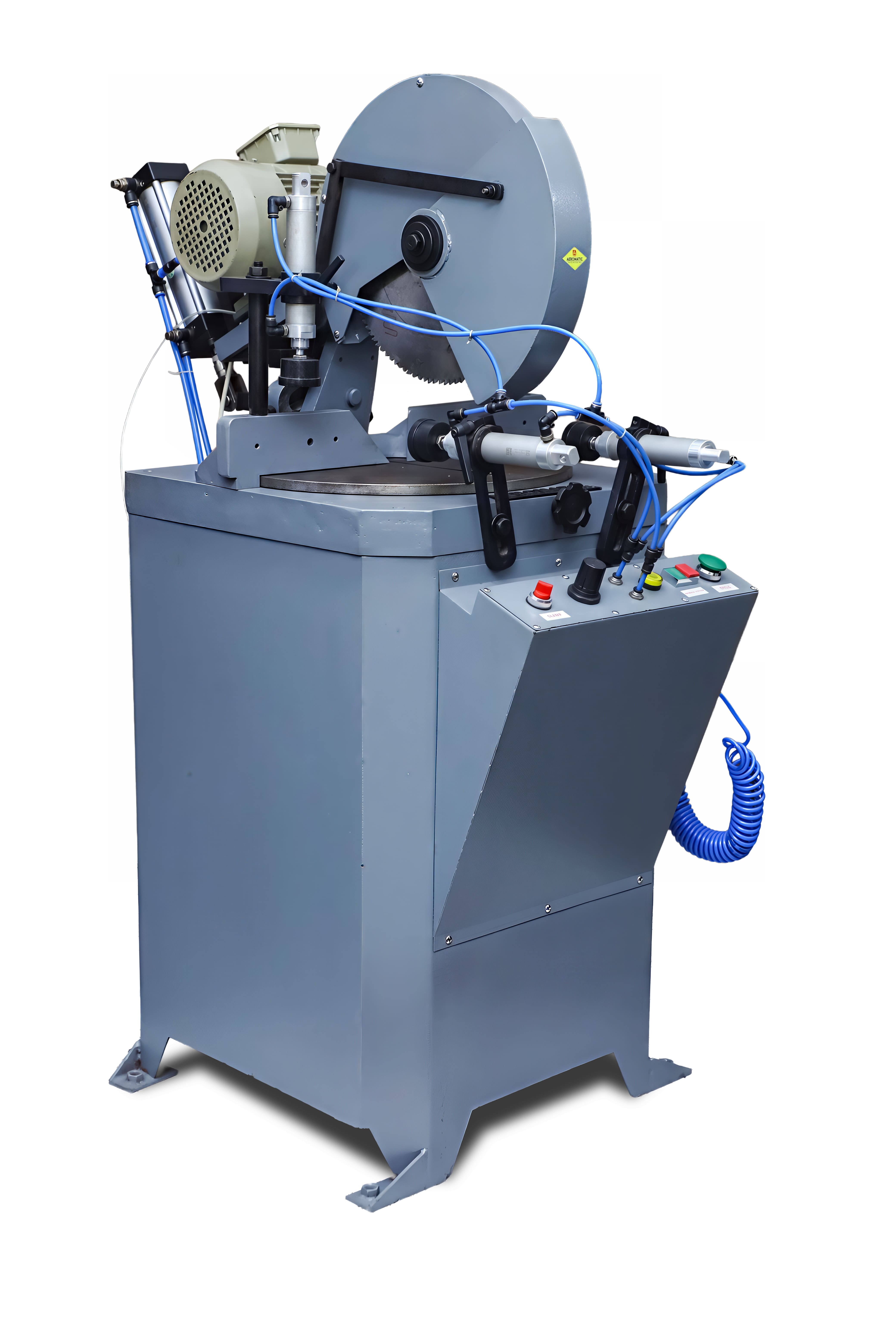

4. Single Head Cutting Machine

AECM - 16

GENERAL FEATURES :-

  • One Hand Safety Operation
  • Pivoting range from -60° to +60°
  • Both left and right infinitely adjustable
  • Hydro-Pneumatic Saw Feed
  • Adjustable Saw Blade Feeding Speed
  • Safety Locking Switches on Top Guard and Front Doors
  • Manually Opening and Closing Safety Guard

STANDARD ACCESSORIES :-

  • Equipped with Saw Blade
  • Ø500 mm and 2.5 kW Motor
  • Spray Saw Blade Lubrication System
  • 2× Vertical & 1× Horizontal Clamps
  • Air Gun

Power:

2 HP - 440V

Phase:

3 - 3.5 AMP

Blade:

Ø500 mm

RPM:

2800

Air Cons:

100 L/min

W × L × H:

28 × 40 × 57

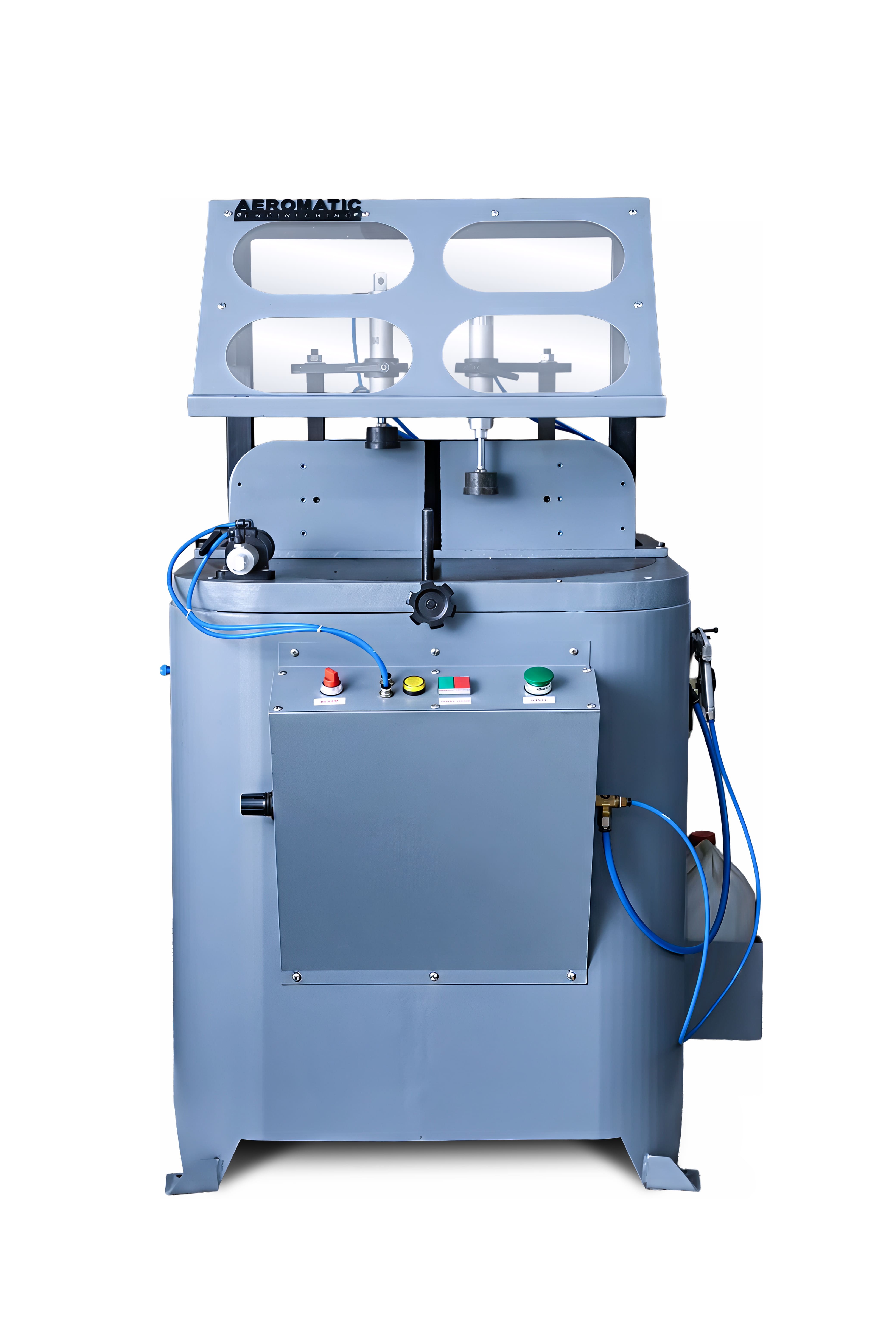

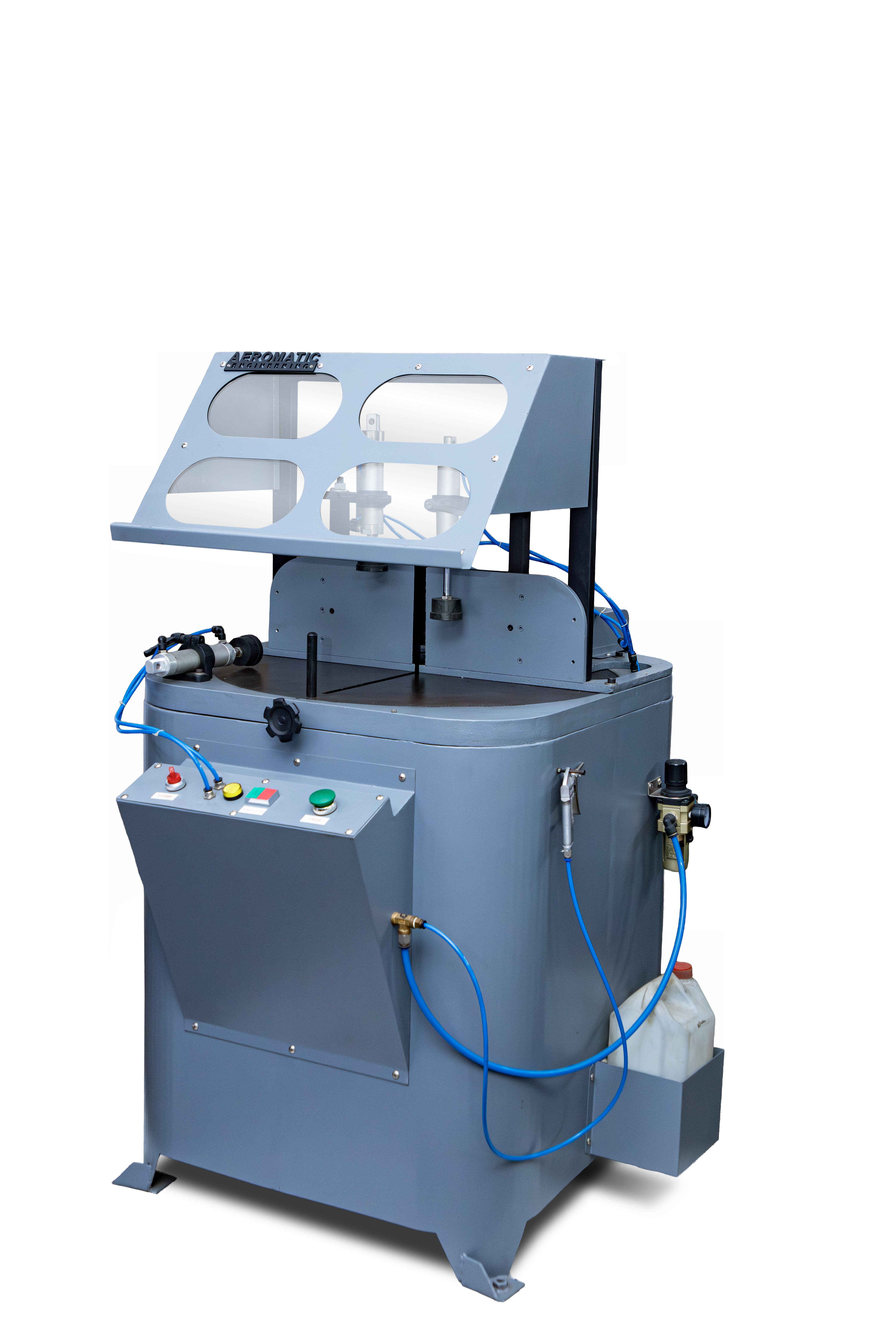

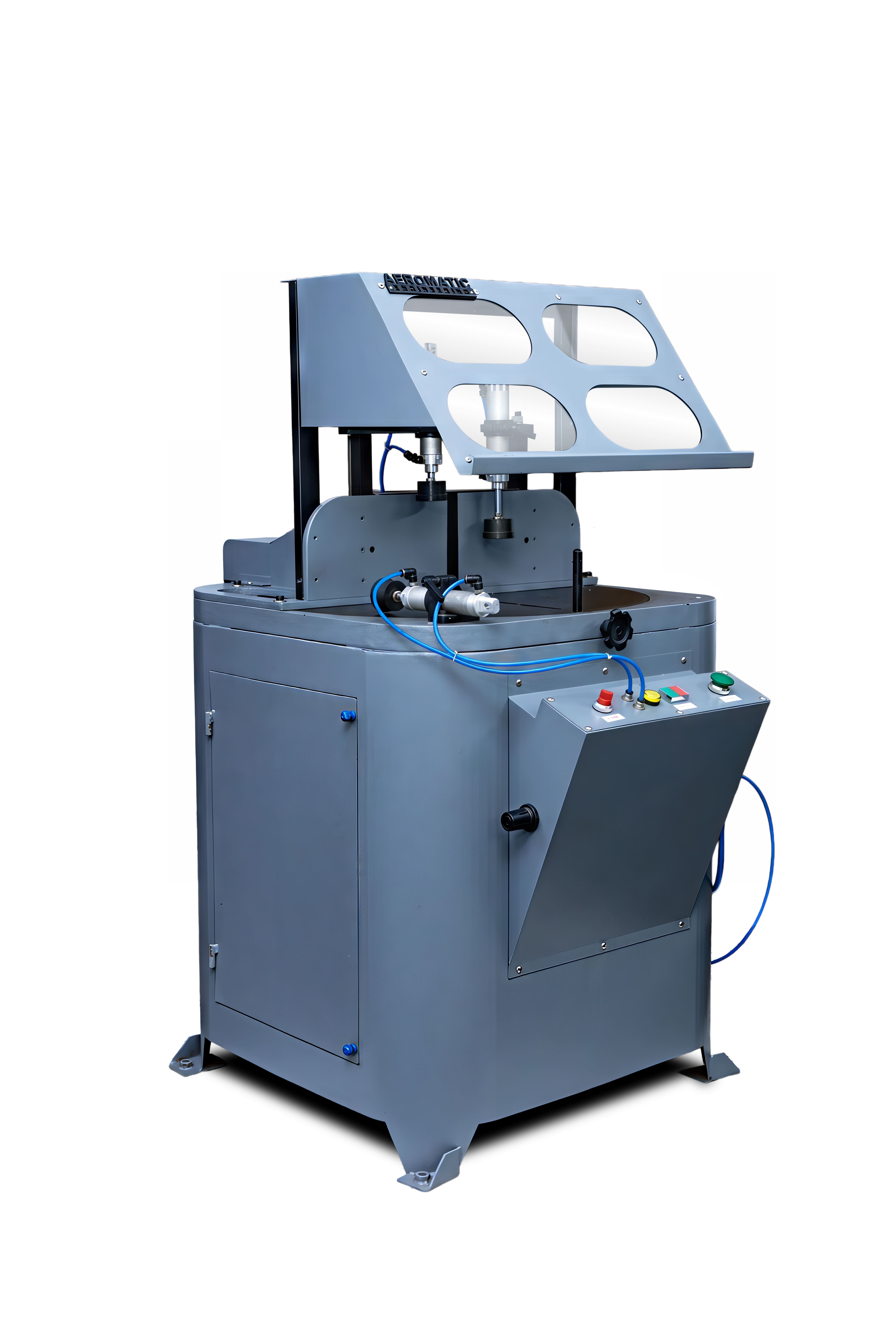

5. Single Head Cutting Machine

AECM - 20

GENERAL FEATURES :-

  • One Hand Safety Operation
  • Pivoting range from -60° to +60° Both left and right infinitely adjustable
  • Hydro-Pneumatic Saw Feed
  • Adjustable Saw Blade Feeding Speed
  • Safety Locking Switches on Top Guard and Front Doors
  • Manually Opening and Closing Safety Guard

STANDARD ACCESSORIES :-

  • Equipped with Saw Blade Ø500 mm and 2.5 kW Motor
  • Spray Saw Blade Lubrication System
  • 2× Vertical & 1× Horizontal Clamps
  • Air Gun

Power:

1.5 HP - 440V

Phase:

3.25 AMP

Blade:

Ø500 mm / Ø30 mm

RPM:

3800

Air Cons:

180 L/min

W × L × H:

33 × 38 × 55

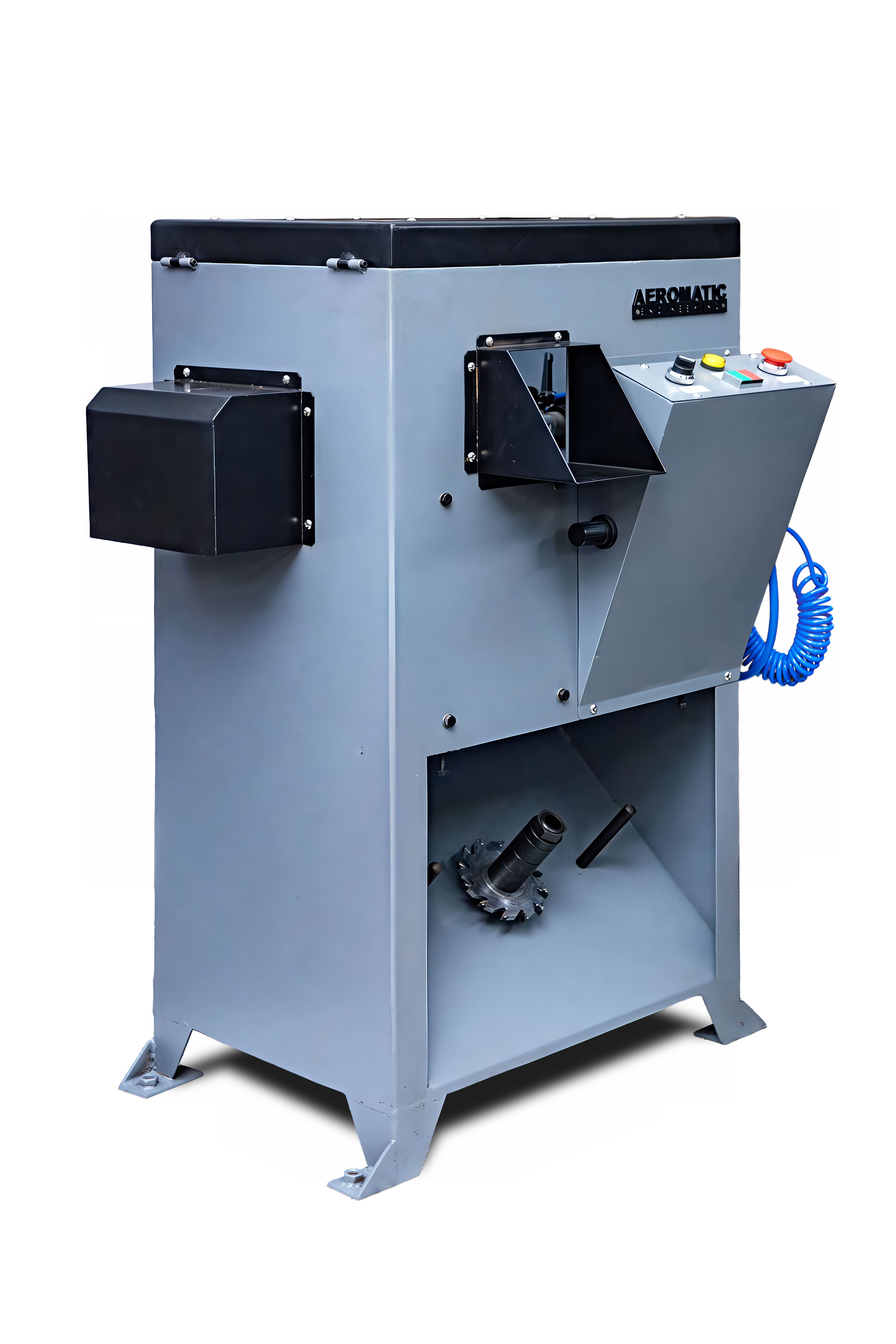

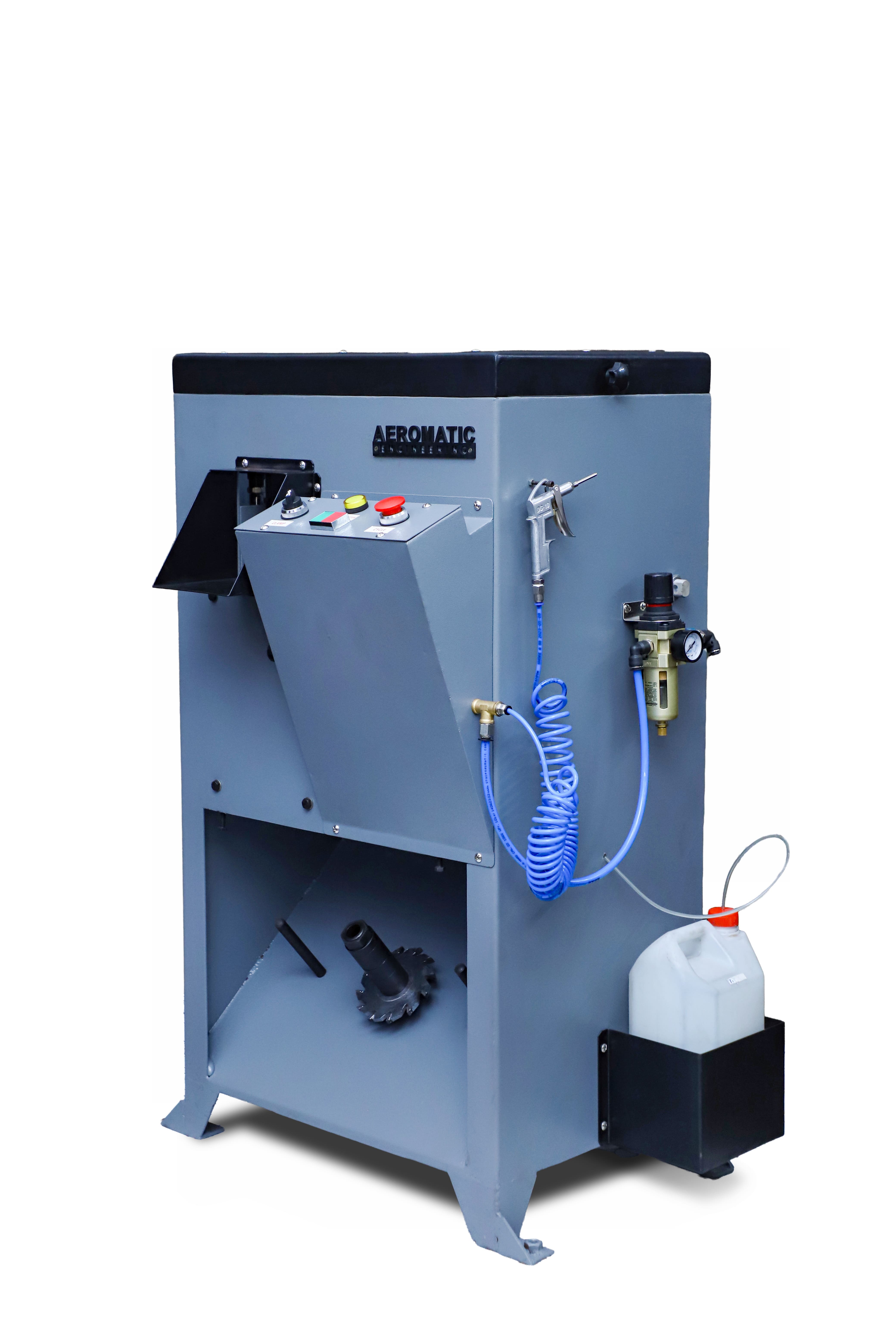

6. End Milling Machine

AEEM - 01

GENERAL FEATURES :-

  • High Quality End-Milling Operations thanks to the Hydro-Pneumatic System.
  • Fixing the workpiece firmly thanks to the Vertical and Horizontal Clamps.
  • Practical Cutter adjustment by means of the spacer parts.
  • Adjustable support system to six different profiles.
  • End Milling of PVC and Aluminium Mullions between 90°.
  • Maximum End Milling Capacity H-90 × W-150 mm.
  • Profile Clamping Capacity H-50 × W-180 mm.
  • Safety Operations with Safety Guard.
  • Maximum Cutter Diameter: Ø130 mm.
  • Storage Place for Spare Tools.
  • Quick Tool Change System.
  • Robust Machine Stand.

STANDARD ACCESSORIES :-

  • Spray Tool Lubrication System.
  • 1× Pneumatic Vertical Clamp.
  • 1× Pneumatic Horizontal Clamp.
  • Air Gun.

Power:

1.5 HP - 440V

Phase:

DC - 2.5 AMP

D. Max:

Ø130 mm

RPM:

2800

Air Cons:

6–8 / 80 L/min

W × L × H:

34 × 24 × 45

Our Machinery

Explore Our Latest High-Precision Industrial Machines

Heavy Duty Punching Machines

Our AEPM series punching machines feature robust MS structures, customizable dies, and precision punching for PVC & Aluminium profiles with thickness from 1 mm to 2.5 mm.

Custom Die Options

Rigid Machine Structure

Seven-Die Mounting Support

Read More

Precision Copy Router Machines

Designed for drilling and routing of hinges, handles, locks, espagnolette, and more, our AECR machines ensure accuracy with corrosion-proof shafts and pneumatic clamping.

Corrosion-Proof Bearings

Electroplated Templates

Spray Lubrication System

Read More

Single Head Cutting Machines

Our AECM series offers hydro-pneumatic saw feed, safety locking switches, angle adjustment from -60° to +60°, and premium saw blades for precise cutting.

Hydro-Pneumatic Feed

Adjustable Cutting Angles

Vertical & Horizontal Clamps

Read More

Precision End Milling Machines

AEEM end milling machines allow cutting of PVC & Aluminium mullions with hydro-pneumatic operation, adjustable supports, and a quick tool change system.

Maximum Cutting Accuracy

Adjustable Profile Support

Robust Machine Stand

Read More
